6 Components Gravimetric dosing system 1600kg / h Plastic Mixing / Blending Machine GDM2500 - 6

Product Introduction:

Gravimetric dosing particularly suitable for injection moulding, blow moulding machines and extruders, filling and packaging machines for granulated and powdery material. The solid steel machine frame and the particular software allow its installation even on machines with constant and controlled vibration. The different types of construction allow the combination of 2 to 8 components, differently dosed in small amounts with normal dosing screw.

The programming and management of the recipes is simple and easy: The operator can easily set the dosing percentages. On the control touch screen each function is indicated by a symbol that represents the part you are programming and in the case of any malfunctioning, each part is represented on the screen.

Struction specifications of GDM2500-6:

Structure body:

• The capability to handle up to six types of materials
• Original double weighing sensor

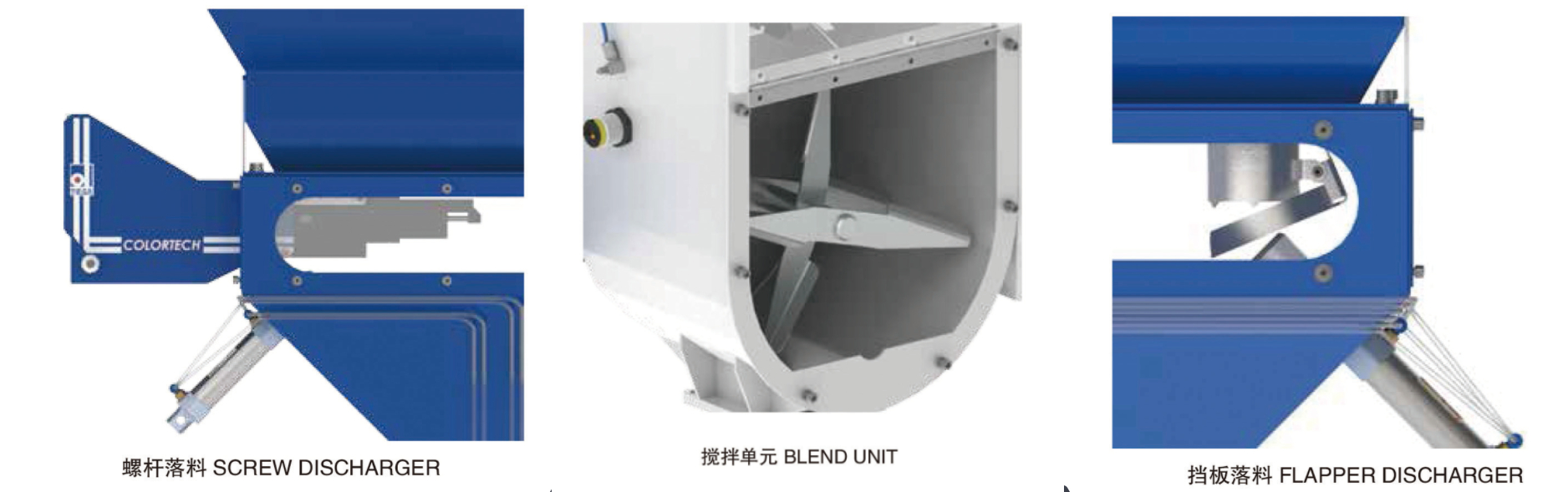

• Ribbon mixer, mixing silo volume 70L, guarantee accurate mixing
• Automatic recalibration
• Solid structure to minimize the effect of the vibration of the molding machine
• Front door being easily openable for quick and convenient cleaning

Raw material storage and discharge:

• Discharge port specification: The system offers different options for discharge port sizes, including Φ30, Φ40, Φ60, and Φ80. These options likely allow for flexibility depending on the specific requirements of the application.
• Screw feeding method: This method is employed for accurately handling small proportions of material.
• Row material storage hopper volume: The system features a storage hopper with a volume ranging from 50 to 300 liters. This range provides the user with options based on their specific needs, allowing for customization depending on factors such as production volume or material requirements.

NOTE: DATE ABOVE WAS TEST UNDER STANDARD CONDITION, USE ONLY FOR REFERENCE, NOT FOR ACCEPTANCE CRITERIA.

Application field:

Gravimetric dosing system used in various fields, such as food, construction materials, medical, chemical, automobile, photovoltaic and other fields.
