Become your trustworthy partner in the field of plastic processing automation process.
2 Years
| Ask Lasest Price | |
| Brand Name : | DEGA |
| Payment Terms : | L/C, T/T |
| Delivery Time : | 30 work days |
| Model Number : | AS/AT Series |
| Certification : | CE, IOS 9001: 2015 |
| Price : | Negotiable |
| Supply Ability : | 50 Sets per Month |

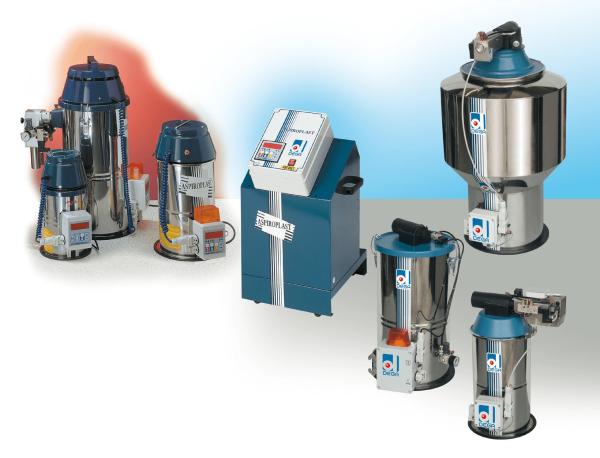

Hopper Loader / Vacuum Pump / Vacuum Loader for Pellet / Vacuum Loader for Powder
Product Introduction
In the mono-phase models, our feeders are fitted with a control card, which allows the regulation of the parameters of pause time, loading time, filter cleaning, proportional valve and also alarm signals for lack of material loading, filter cleaning and replacement of motor carbon brushes.
The control board of the AT type series is positioned on the pump protection box on the floor. The control card allows the setting of the parameters of pause time, loading time, filter cleaning, proportional valve and the alarm signal for lack of material loading, filter blocked, bearing inspection, high temperature and pump overload.
Single Phase Hopper Loader Technical Features
| Type | Model | Capacity KG/H | Power KW | Net Weight KG | Dimension |
Single Phase | PIXIE | 20 | 0.85 | 6.0 | 380x210x172x183x60 |
| AS70 | 40-100 | 1.10 | 10.0 | 515x275x222x173 | |
| AS150 | 70-180 | 1.10 | 11.0 | 680x325x285x216 |
AS Series Outline Drawing
Triple Phase Hopper Loader Technical Features
| Type | Brach | Model | Capacity KG/H | Power KW | Net Weight KG | Dimension |
Triple Phase | Single Stage | AT300 | 80-300 | 0.75 | 20.0 | 570x355x280 |
| AT400 | 80-400 | 1.50 | 25.0 | 800x400x480 | ||
| AT500 | 80-500 | 2.20 | 40.0 | 800x500x530 | ||
| AT600 | 80-600 | 3.00 | 45.0 | 800x500x530 | ||
Double Stage | ATB600 | 80-600 | 3.00 | 45.0 | 800x500x530 | |
| ATB700 | 80-700 | 4.00 | 60.0 | 1200x770x650 | ||
| ATB900 | 80-900 | 7.50 | 70.0 | 1200x770x650 | ||
| ATB1200 | 80-1200 | 11.00 | 85.0 | 1200x770x650 |
AT Series Outline Drawing
|
|
